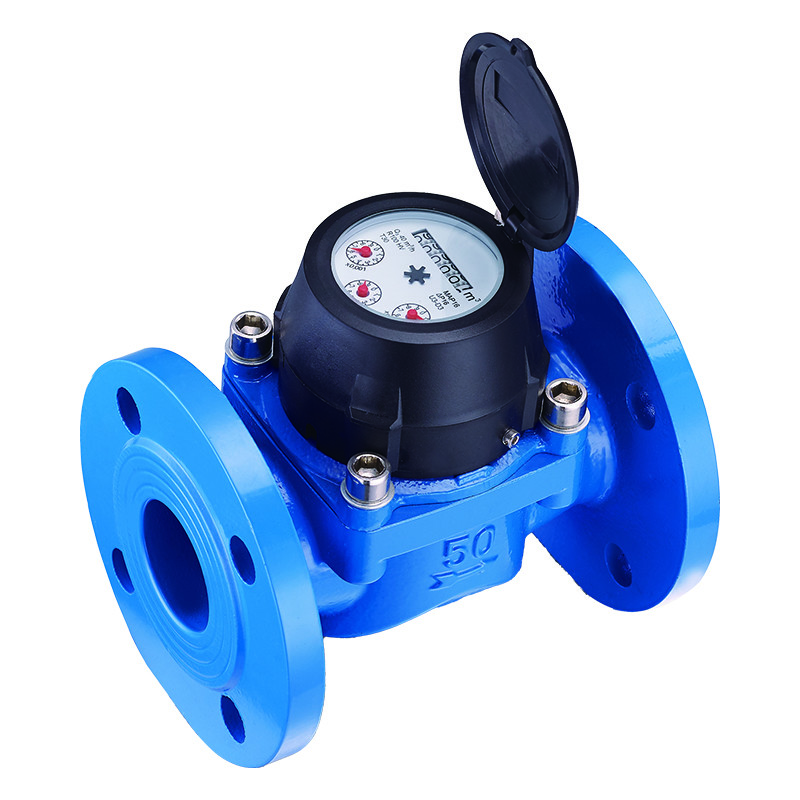

R160 Woltman Water Meter
  • R160 Woltman Water MeterR160 Woltman Water Meter

R160 Woltman Water Meter

As a professional bulk meter manufacture, you can rest assured to buy R160 woltman water meter from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

1. Features of R160 Woltman Water Meter

Hermetically sealed register(IP 68)

Hydrodynamically balanced system

Register may be rotated through 360

High overload capability

Pattern approved removable measuring element

Powder coating affords max. corrosion protection

Not affected by external magnetic fields

Available for cold water 0~30℃ and hot water30℃~90℃

2. Working condition of R160 Woltman Water Meter

Water temperature≤30℃; hot water meter ≤90℃.

Water pressure≤1MPa (PN:1.6MPa/16bar)

ΔP≤0.63MPa

3. Accuracy of R160 Woltman Water Meter

From minimum flow-rate(qmin) inclusive , to transitional flow- rate(qt) exclusive:±5%

From transitional flow- rate(qt) inclusive , to overload flow- rate(qs) exclusive:±2%

4. Upon request of R160 Woltman Water Meter

Remote transmission device can be added upon request

Pulse output 100L/Pulse ,1000 L/Pulse

5. Head Loss Curve of R160 Woltman Water Meter

6. Error Curve of R160 Woltman Water Meter

7. Dimension of R160 Woltman Water Meter

Model Number LXLC-50E4a LXLC-65E4a LXLC-80E4a LXLC-100E4a LXLC-125E4a LXLC-150E4a LXLC-200E4a
L mm 200 200 225 250 250 300 350
H mm 200 208 245 245 275 350 370
W mm 165 185 200 200 220 285 347
D mm 160 180 195 215 245 285 340
D1 mm 125 145 160 180 210 240 295
Connecting bolt(pcs.) 4×M16 4XM16 8×M16 8×M16 8xM16 8×M20 12×M20
Weight 8.00 9.50 14.50 16.80 20.00 36.00 44.50

8. Main technical data of R160 Woltman Water Meter

Model Number LXLC-50E4a LXLC-65E4a LXLC-80E4a LXLC-100E4a LXLC-125E4a LXLC-150E4a LXLC-200E4a
Nominal diameter (DN)[mm]: 50 65 80 100 125 150 200
Ratio Q3/Q1: R100 R160 R100 R160 R100 R160 R100 R160 R100 R160 R100 R160 R100 R160
Overload flow rate (Q4) [m³/h] 50 78.75 78.75 78.75 125 125 200 200 200 312.5 500 500 787.5 787.5
Permanent flow rate (Q3) [m³/h] 40 40 63 63 100 100 160 160 250 250 400 400 630 630
Transitional flow rate (Q2) [m³/h] 0.64 0.63 1.008 0.63 1.6 1 2.56 1.6 2.56 2.5 6.4 4 10.08 6.3
Minimum flow rate (Q1) [m³/h] 0.4 0.394 0.63 0.394 1 0.625 1.6 1 1.6 1.5625 4 2.5 6.3 3.9375
Accuracy class: 2
Maximum permissible error for the
lower flow rate zone (MPEι):
±5%
Maximum permissible error for
the upper flow rate zone (MPEμ):
±2% for water having a temperature ≤30℃
±3% for water having a temperature >30℃
Temperature class: T30 and T50
Water pressure classes: MAP 16
Pressure-loss classes: △P40
Indicating range[m3]: 999999
Resolution of the
indicating device[m3]:
0.0005
Flow profile sensitivity classes: U10 D5
Orientation limitation: YES
Connection Thread: Flange connecting

FAQ

Q. Are you the factory?

A. Yes. We are factory. WENLING YOUNIO WATER METER was established in 1983, specializes in producing all kinds of water meters and spare parts. Welcome to visit to our factory anytime.

Q. What kind of certification do you have ?

A. ISO4064, CE certificate, MID certificate, NSF certificate, ROHS certificate.

Q.How to request a quotation from YOUNNIO?

A. Simply call or send us E-mail with your purchase request. If detail requirements (like the type, size, weight ,package and so on) can be shared will be better for quick quotation.

Q.What are your quality control procedures?

A.YOUNIO strictly get the control of quality, which begin with material purchase and carry through to the end of the production process by ISO9001 management system.Before shipping, welcome the examination of goods.

Q. Do you offer OEM service.

A. Yes. We have a professional D&D team to follow requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do YOUNIO products come with a warranty ?

A. Yes. We backs our products100% generous 2 year warranty.
