What Technical Specs Should Water Utility Buyers Check When Selecting R200 Volumetric Water Meters

● 2026-08-31 ● - ● Leave me a message

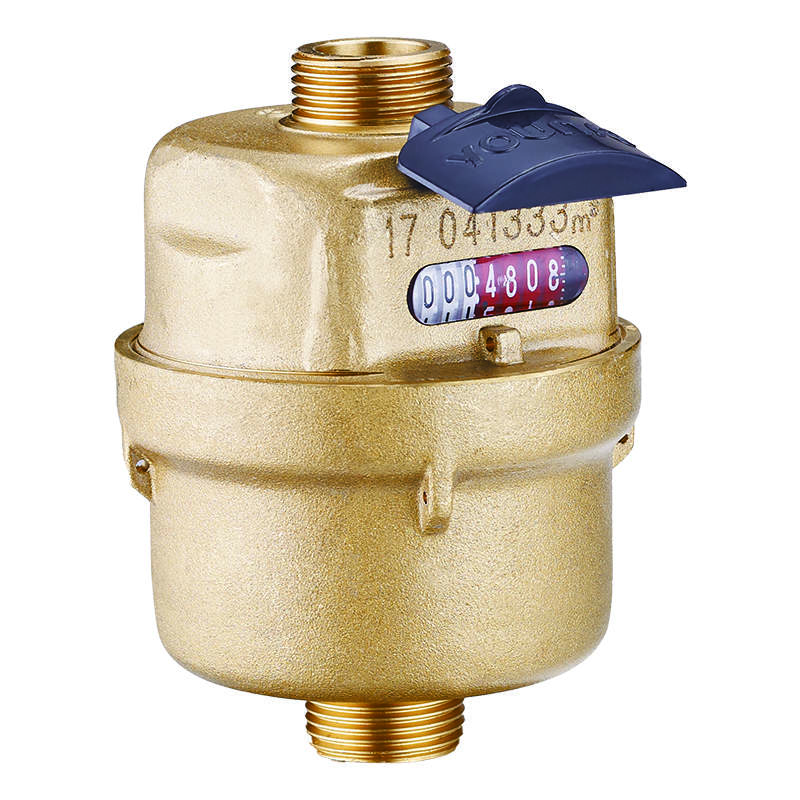

Water utility companies, municipal project contractors and water meter importers need to carefully evaluate technical parameters before purchasing volumetric water meters. Improper meter selection can lead to inaccurate billing, high pressure loss and unstable operation. YOUNIO R200 volumetric water meter delivers reliable metering for residential water supply projects. This article lists the key technical specifications that buyers must verify for procurement and tender review.

1. Operating Working Conditions

Water temperature: ≤30℃ (T30 temperature class, cold water application only)

Water pressure: ≤1MPa; Nominal pressure PN1.6MPa /16bar

Pressure loss: ΔP ≤0.1MPa for Class C; ΔP ≤0.063MPa for R160 version

Installation orientation: Supports horizontal or vertical mounting (H/V orientation limitation)

2. Metering Accuracy Standard

The R200 volumetric water meter follows Class 2 accuracy with clear error tolerance in different flow zones:

Low flow zone (Q1 inclusive to Q2 exclusive): Maximum permissible error ±5%

High flow zone (Q2 inclusive to Q4 exclusive): Maximum permissible error ±2% This stable accuracy helps reduce water leakage detection errors and improves billing fairness for water utilities.

3. Core Flow Parameters of YOUNIO R200 Water Meter

Model	LXH-15	LXH-20	LXH-25	LXH-40
Nominal Diameter DN (mm)	15	20	25	40
Ratio Q3/Q1	160	160	160	160
Overload flow rate Q4 (m³/h)	3.125	5	7.875	20
Permanent flow rate Q3 (m³/h)	2.5	4	6.3	16
Transitional flow rate Q2 (m³/h)	0.025	0.04	0.063	0.16
Minimum flow rate Q1 (m³/h)	0.025	0.025	0.039375	0.1
Indicating range (m³)	9999	9999	9999	9999
Resolution (m³)	0.001	0.001	0.001	0.001

4. Dimension & Thread Connection Data

Type	Size(mm)	Length L(mm)	Width W(mm)	Height H(mm)	Connecting Thread
LXH-15	15	115	90	-	G3/4"B
LXH-20	20	165	90	-	G1"B
LXH-25	25	200	106	-	G1 1/4"B
LXH-40	40	227	152	-	G2"B
LXH-15E	15	165	96	115	G3/4"B

5. Required Certifications for Global Water Projects

Buyers should confirm complete certificates before import or municipal tender:

ISO4064 water meter standard

CE, MID certificate for European market access

NSF and RoHS certificate YOUNIO factory holds all above certificates to meet international water metering regulatory requirements.

6. Factory Quality Control & Commercial Support

Factory background: YOUNIO founded in 1983, professional manufacturer of water meters and spare parts. Factory visit is welcome.

Quality management: ISO9001 quality control system, full inspection from raw material to finished goods. Pre-shipment inspection is acceptable.

OEM service: Custom logo printing or embossing available, trademark registration document required. Professional design & development team supports customised requests.

Warranty: 2-year product warranty. YOUNIO takes responsibility for original defective products.

7. How to Submit Inquiry

Send email or call YOUNIO with detailed requirements including model, size, quantity and packaging specification. Sales team will reply quickly and provide formal quotation.

Conclusion

When selecting R200 volumetric water meters, buyers need to check working temperature & pressure, flow parameters, accuracy class, dimensions and compliance certificates. YOUNIO provides fully tested R200 volumetric water meters with complete certification, OEM support and 2-year warranty for municipal and residential water metering projects.
